Ring And Pinion Pattern - Web 8.4k views 2 months ago. Web ring & pinion tooth pattern interpretation when setting the pinion position, many of the service manuals required a final pinion position check by using guages that verified the dimension from the center line of the different carrier (center line of ring gear) to the face of the pinion (button). Rotate by grabbing and turning the ring gear, not the pinion. Independent front suspension (ifs) or solid straight axle in front. Make large pinion depth adjustments first. Web use shims to move the ring gear closer to the pinion to decrease backlash.

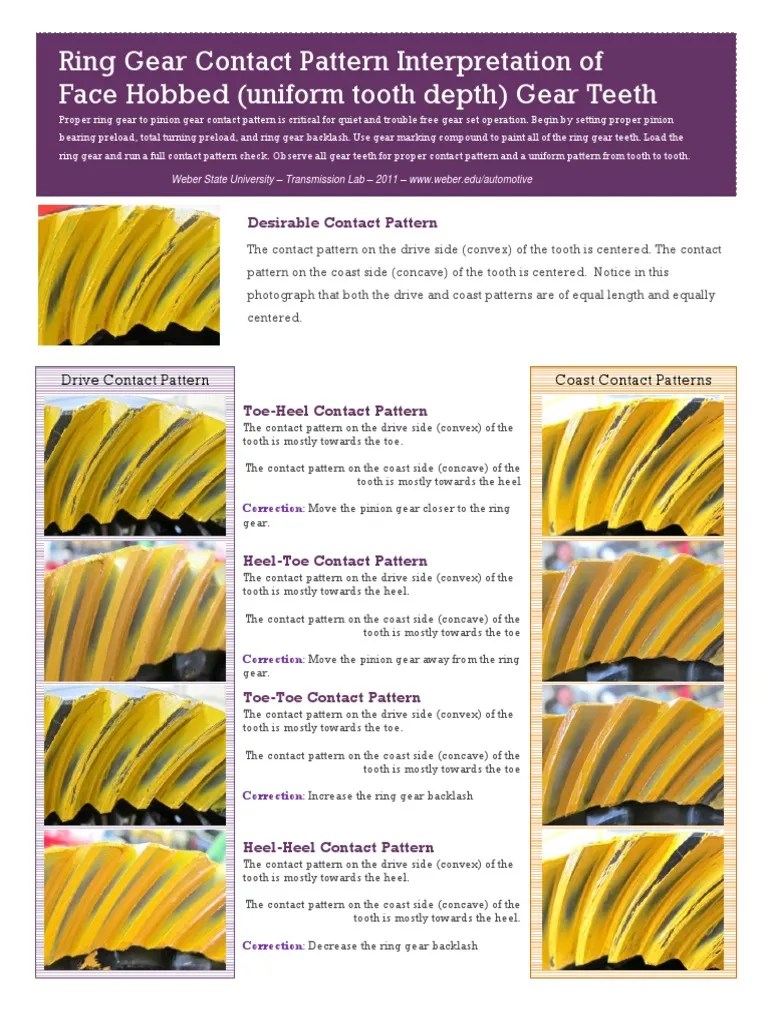

Web moving the pinion toward the ring gear causes the pattern to move toward the bottom or root of the gear teeth. Or an ominous clunking sound? Web ring gear contact pattern interpretation of face hobbed (uniform tooth depth) gear teeth. Bearing preload, total turning preload, and ring gear backlash. If you are setting up a used gear set, focus more on the coast side as this surface has less wear on it and is a better indicator of gear position.
